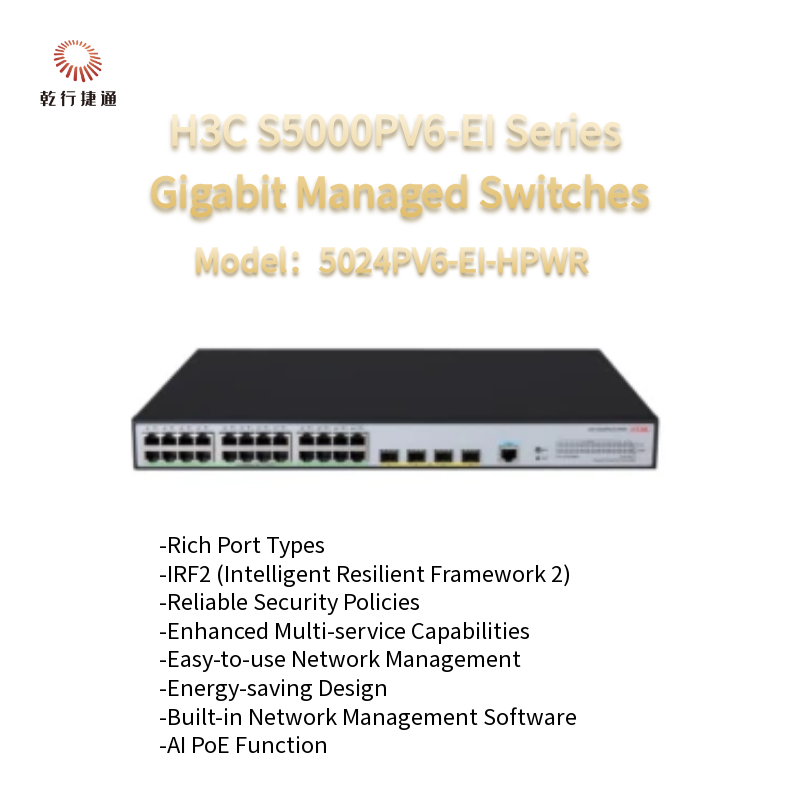

H3C S5000PV6-EI Series S5024PV6-EI-HPWR Gigabit Managed Switches

H3C S5000PV6-EI Series S5024PV6-EI-HPWR Gigabit Managed Switches
H3C S5000PV6-EI Series S5024PV6-EI-HPWR Gigabit Managed Switches

Ampliación de imagen :  H3C S5000PV6-EI Series S5024PV6-EI-HPWR Gigabit Managed Switches

Datos del producto:
Nombre de la marca: H3C
Número de modelo: S5024PV6-EI-HPWR
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: $680-1980
Contacto

H3C S5000PV6-EI Series S5024PV6-EI-HPWR Gigabit Managed Switches

descripción
Atributo: S5024PV6-EI-HPWR Capacidad de conmutación: 596 Gbps/5,96 Tbps
Tasa de reenvío de paquetes: 126 Mpps Puertos de gestión: 1 x puerto de consola
Puertos fijos: Puertos Ethernet 24×10/100/1000Base-T Características del puerto eléctrico: Admite semidúplex y dúplex completo
Resaltar:

H3C S5000PV6-EI managed switch

,

Gigabit managed switch with HPWR

,

Fibre Channel switch S5024PV6-EI


H3C S5000PV6-EI Series Gigabit Managed Switches


Product Overview

The H3C S5000PV6-EI Series Ethernet Switches are a new generation of high-performance full-gigabit managed switches launched by H3C for the small and medium-sized commercial market. They support IRF2 stacking, and deliver comprehensive security access policies as well as superior ease of network management and maintenance. These switches are widely applied to network deployment in government agencies, small and medium-sized enterprises, schools, hotels and other industries.

Attribute S5024PV6-EI-HPWR
Switching Capacity 596Gbps/5.96Tbps
Packet Forwarding Rate 126Mpps
Management Ports 1 x Console port
Fixed Ports 24×10/100/1000Base-T Ethernet ports;
4×1000Base-X SFP ports
Electrical Port Features Supports half-duplex, full-duplex, and auto-negotiation modes;
Supports MDI/MDI-X
Ethernet Features Supports IRF2 (max. 9 units stacking);
Supports LLDP; Static MAC configuration;
Supports MAC address learning count limit (max. 16K MAC address depth);
Supports port mirroring and flow mirroring;
Supports port aggregation (max. 8 ports per group, up to 24 groups);
Supports port isolation;
Supports STP/RSTP/MSTP;
Supports IEEE 802.3ad (dynamic link aggregation) and static port aggregation
VLAN Supports 802.1Q (max. 4K VLANs);
Supports protocol-based VLAN;
Supports MAC-based VLAN;
Supports GUEST VLAN;
Supports VLAN mapping;
Supports MVRP
IP Routing Supports static routing
DHCP Supports DHCP Relay;
Supports DHCP Client;
Supports DHCP Snooping
Multicast Supports IGMP V1/V2/V3 Snooping;
Supports PIM Snooping;
Supports multicast VLAN;
Supports IPv6 multicast settings
QoS Supports SP/WRR/SP+WRR queue scheduling;
Supports 802.1p, DSCP priority mapping;
Supports port rate limiting



Product Features


Diverse Port Types

  • The full series features combined Ethernet and optical ports to meet diversified networking demands and enable flexible deployment.
  • Models with 8/16/24/48 ports (PoE & non-PoE) are available. All ports deliver wire-speed gigabit forwarding to match various application requirements.


IRF2 (Intelligent Resilient Framework 2)

The series supports IRF2, which virtualizes multiple physical switches into one logical unit for unified management and operation. Its key advantages are as follows:
  • Simplified Management: Access any port of any member device to log in to the unified logical system. Configure the whole IRF system via a single device instead of managing units separately.
  • Simplified Services: Control protocols run uniformly on the virtual device. Cross-device link aggregation replaces Spanning Tree Protocol, reducing protocol interaction, optimizing network operation and accelerating convergence.
  • Flexible Scalability: Devices support hot plugging during expansion or removal without disrupting ongoing services, protecting user investments.
  • High Reliability: It provides multi-link redundancy via port aggregation between member devices and uplink/downlink connections. The system automatically elects a new Master upon Master device failure to implement 1:N device backup. Real-time protocol backup ensures 1:N protocol reliability.
  • High Performance: The overall capacity and port density equal the sum of all member devices, greatly boosting switching performance and port scale.


Reliable Security Policies

  • Built-in ARP intrusion detection defends against ARP spoofing attacks.
  • IP Source Guard prevents MAC, IP and combined MAC/IP spoofing as well as DoS attacks.
  • DHCP Snooping prohibits unauthorized DHCP servers to ensure stable DHCP operation.
  • Port security mitigates MAC-based attacks and controls traffic by MAC addresses.
  • It supports 802.1X and MAC authentication, client version detection and Guest VLAN. Combined with iMC, it enables proxy and dual-NIC detection.


Enhanced Multi-service Capabilities

  • Port and flow rate limiting prevents bandwidth abuse and enables refined traffic management.
  • Three queue scheduling modes (SP, WRR, SP+WRR) support multi-priority data transmission.
  • Rich IPv6 features and diverse IPv6 management functions are provided.


User-friendly Network Management

  • It supports CLI, Web and Telnet for convenient management, as well as SSH 2.0 for encrypted and secure access.
  • Remote firmware upgrade via FTP/TFTP is available. It is compatible with SNMP v1/v2c/v3, iMC and OpenView management platforms.
  • A physical RESET button helps restore device status, reconfigure settings and troubleshoot network faults.


Energy-saving Design

  • Optimized power consumption cuts energy use and failure risks. Its radiation level complies with household appliance standards.
  • The whole product meets EU RoHS environmental and safety requirements.


*Built-in Network Management Software

The embedded management software enables unified management of switches, wireless devices and routers. It provides free O&M and simplified deployment for small-scale networks. The S5000PV6-EI series can work as managed nodes for easy maintenance.

AI PoE Function

The series adopts AI PoE technology, integrating AI into PoE design to realize intelligent PD power supply, power budget control, power management, alarm logging, PoE security, fast reboot, Perpetual PoE and long-distance PoE transmission.
In addition, PoE Watchdog automatically monitors port status. It restarts PoE power supply on faulty ports to resume normal communication.

Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.

International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
