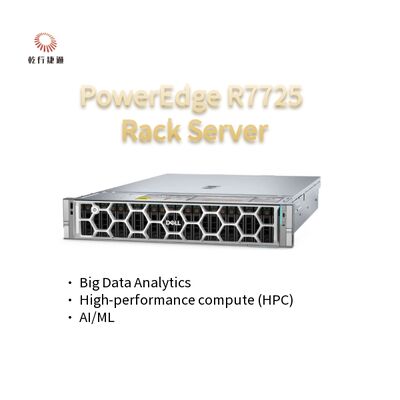

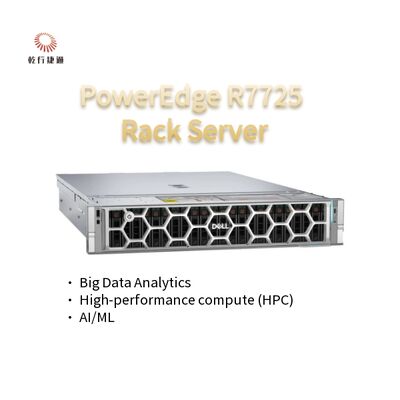

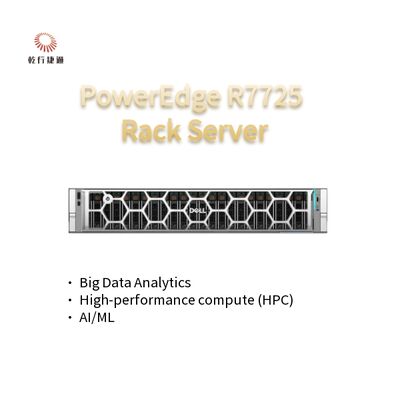

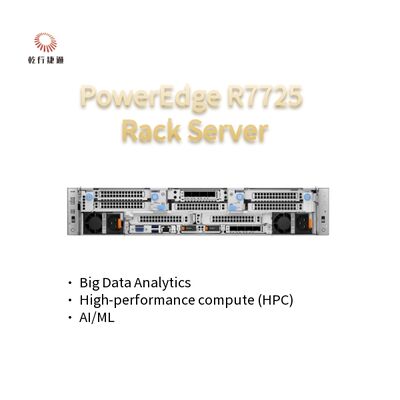

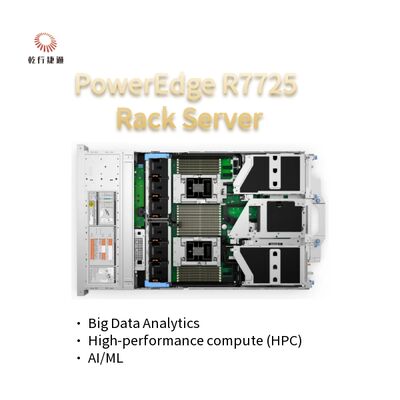

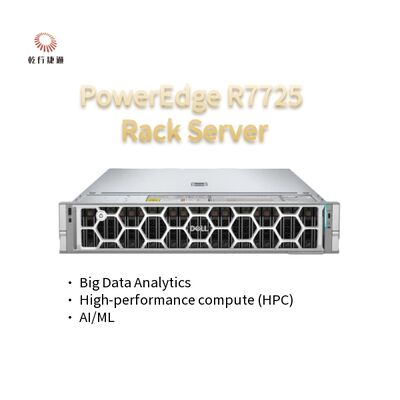

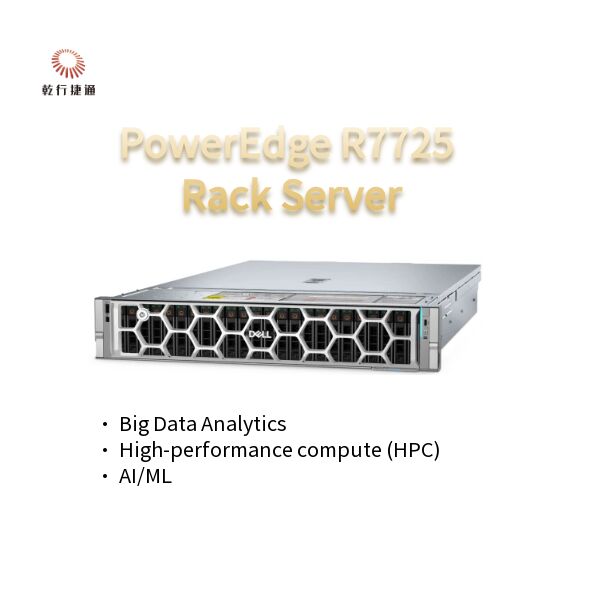

PowerEdge R7725 Server
Versatility Meets Performance
The new Dell PowerEdge R7725 is designed to be the foundation of your data center. This exceptionally powerful server provides
excellent performance, flexibility and low-latency storage options in an air-cooled configuration.
| Processor |
Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor |
| Memory |
• 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 6400 MT/s
• Supports registered ECC DDR5 DIMMs only |
| Storage controllers |
• Internal Controllers (RAID): PERC H365i,H965i, H975i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
• External HBAs (non-RAID): HBA465e |
| Drive Bays |
Front bays:
• 12 x 3.5-inch SAS/SATA
• 8 x 2.5-inch Universal / 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
• 16 x 2.5-inch SAS/SATA + 8 x U.2 or 2.5-inch NVMe RAID
• 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S |
| Power Supplies |
• Platinum: 800W, 1100W
• Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC, 1800W*, 2400W, 3200W, 3200W 277Vac & HVDC
• Telco: 1400W -48VDC |
| Cooling Options |
Air cooling, Direct Liquid Cooling (DLC) |
| Fans |
• Up to six hot plug fans |
| Dimensions |
• Height – 86.8 mm (3.42 inches)
• Width – 482 mm (18.98 inches)
• Depth – 802.4 mm (31.59 inches) with bezel
801.51 mm (31.55 inches) without bezel |
| Form Factor |
2U rack server |
| Embedded Management |
• iDRAC 10
• iDRAC Direct
• iDRAC RESTful API with Redfish
• Racadm CLI
• Quick Sync 2 wireless module |
| Bezel |
Optional metal bezel |
| OpenManage Consoles |
• OpenManage Enterprise (OME)
• OME Power Manager
• OME Services
• OME Update Manager
• OME APEX AIOps Observability
• OME Integration for VMware vCenter (with VMware Aria Operations)
• OME integration for Microsoft System Center
• OpenManage Integration for Windows Admin Center |
| Mobility |
N/A |
| Tools |
IPMI |
| Integrations and Connections |
OpenManage Integrations
• RedHat Ansible Collections
• Terraform Providers |
| Change Management |
• Dell Repository Manager
• Dell System Update
• Enterprise Catalogs
• Server Update Utility (SUU) |
| Security |
• AMD Secure Encrypted Virtualization (SEV)
• AMD Secure Memory Encryption (SME)
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown
• TPM 2.0 FIPS, CC-TCG certified
• Chassis Intrusion Detection |
| GPU Options |
Up to 2 x 450W DW; Up to 6 x 75W SW |
| Ports |
Front Ports
• 1 x USB 2.0 Type-A (optional LCP KVM)
• 1 x USB 2.0 Type-C (HOST/BMC Direct)
• 1 x Mini DisplayPort (optional LCP KVM) |
Rear Ports
• 1 x dedicated BMC Ethernet port
• 2 x USB 3.1 Type-A
• 1 x VGA |
Internal Port
• 1 x USB 3.1 Type-A |
| PCIe |
Up to eight PCIe slots (x8 or x16 connector)
• Slot 1: 1 x8 Gen5 Full Height
• Slot 2: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
• Slot 3: 1 x16 Gen5 Full Height or Low Profile
• Slot 4: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 OCP3.0
• Slot 5: 1 x8 Gen5 Full Height
• Slot 7: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height or 1 x16 Dual Width Full Length
• Slot 8: 1 x16 Gen5 Full Height or 1 x8 Gen5 Full Height
• Slot 9: 1 x16 Gen5 Full Height or Low Profile |
| Gen5 PCIe slots |
8 |
| OCP Network options |
• 2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
• Slot 4: 1 x16 Gen5 second OCP 3.0
• Slot 10: 1 x16 Gen5 OCP3.0 |
| Embedded NIC |
1 Gb dedicated BMC Ethernet port |
| DPU Options |
• NVIDIA BlueField-3 2x200 GbE B3220
• NVIDIA BlueField-3 1x400 GbE B3140H * |
| PCIe Add-in Card (AIC) NIC |
100 GbE and 400GbE; NDR VPI (400GbE); FC 32 / 64 |
| Operating System and Hypervisors |
• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• VMware ESXi
• SUSE Linux Enterprise Server |
Breakthrough performance that scales
Delivering breakthrough performance that scales for traditional and emerging workloads, including big data analytics,
AI/ML and high-performance compute (HPC), using the latest performance and density with optional acceleration.
Striving for next-level compute
Our partnership with AMD allows us to provide customers with a powerful 2-socket 2U server that can handle a variety of workloads. The PowerEdge R7725 is perfect for high-requirement data applications with greater flexibility and multiple configuration options to suit diverse customer needs.
• Maximize performance with two AMD 5th Generation EPYCTM processors packed with 50% more cores.
• Memory density with DDR5 (up to 6 TB of RAM) memory capacity.
• Up to 8x Gen 5 PCIe slots and dual OCP offering flexibility to meet workload requirements.
• Support for AI workloads with up to 2 x DW; 6 x SW GPUs.
Energy Efficiency through consolidation
Lower your total cost of ownership while reducing energy consumption and make the best use of existing datacenter space
• Smart Cooling design allows most configurations to be air-cooled
• Improved heat sinks for better thermal performance
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls safeguard trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage systems management portfolio tames the complexity of managing and securing IT
infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by
reducing process and information silos in order to focus on growing the business. The Dell OpenManage portfolio is
the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your
technology environment.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the
PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower
your operation costs. We even make it easy to retire legacy systems
responsibly with Dell Technologies.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services designed to meet you wherever you are. Accelerate time to value in achieving high AI use cases with Professional Services for AI, choose from tailored deployment options with the ProDeploy Suite, receive proactive and predictive support with our ProSupport Suite, and so much more with our services available across 170 locations and backed by our 60K+ employees and partners.
