Rack Server FusionServer 1288H V7 In
troduction

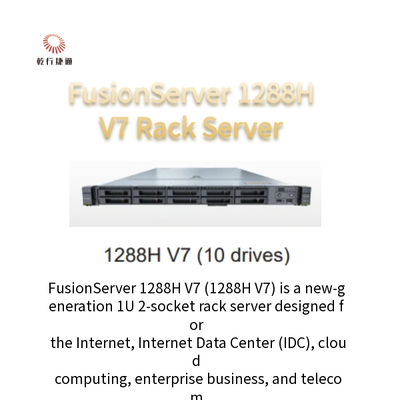

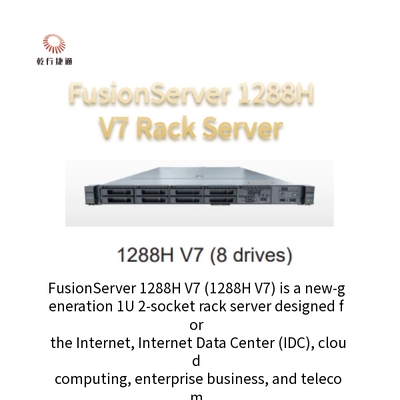

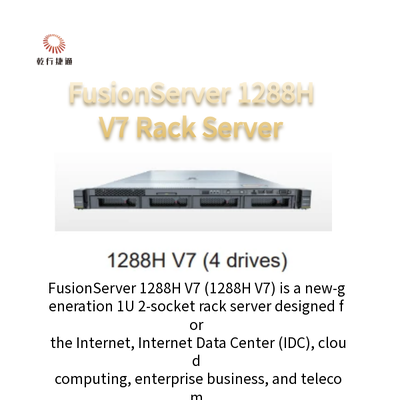

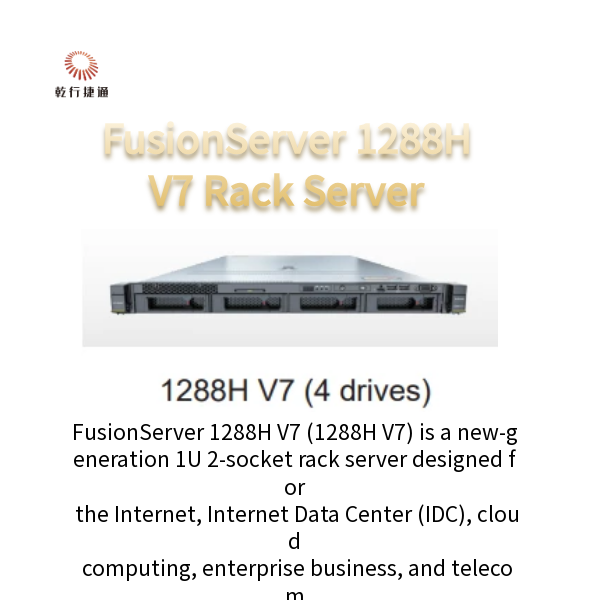

FusionServer 1288H V7 (1288H V7) is a new-generation 1U 2-socket rack server designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecom. It is also ideal for IT core services, virtualization, scientific computing, distributed storage, and other complex workloads. The 1288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
Technical Specifications
| Form Factor |
1U rack server |
| Processor |
1 or 2 x 4th or 5th Gen Intel ® Xeon® Scalable processors with TDP up to 385 W per processor |
| Chipset |
Emmitsburg PCH |
| Memory |
32 x DDR5 DIMMs, with up to 5600 MT/s speed |
| Local Storage |
Hot-swappable drive configurations:
- 8 to 12 x 2.5" SAS/SATA drives/SSDs
- 4 x 3.5" SAS/SATA drives/SSDs
Flash storage: dual M.2 SSDs |
| RAID |
RAID 0, 1, 10, 1E, 5. 50, 6, or 60; supercapacitors for cache data protection from power failures;RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network |
Multiple network expansion capabilities; 2 x FlexlO card slots dedicated for OCP 3.0 NICs, which can beconfigured as required; supporting hot swap and PCle 5.0 |
| PCIe ExpansionFan Module |
5 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 3 x PCIe slots, and 1 slots supporting PCIe 5.0 |
| Fan Module |
8 x hot-swappable counter-rotating fan modules in N+1 redundancy |
| PSU |
900 W/1200 W/1500 W/2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management |
The iBMC chip integrates one dedicated management GE network port, providing comprehensivemanagement features such as fault diagnosis, automatic O&M, and hardware security hardening.- The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remotemanagement user interface based on HTML5/VNC KVM; supports out-of-band management functionssuch as monitoring, diagnosis, configuration, Agentless, and remote control for simplified managementIt is optional to configure the FusionDirector management software that provides advancedmanagement features such as five intelligent technologies, enabling intelligent, automaticvisualized, and refined management throughout the lifecycle |
| OS |
FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux,CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Security |
Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel,secure boot, and chassis intrusion detection |
| Operating Temperature |
5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1/A2/A3/A4 |
| Certification |
CE, UL, CCC, FCC, VCCI, and RoHS |
| Installation Suite |
L-shaped guide rails, adjustable guide rails, and holding rails |
Dimensions
(HxWxD) |
Chassis with 3.5" drives: 43mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.)
Chassis with 2.5" drives: 43mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) |
Highlights
High-Density Computing Power
- High-density computing power: 2 x 385 W CPUs and 32 x DDR5 DIMMs in 1U space
- Faster connectivity for faster applications: PCIe 5.0 and 400 Gbit/s NIC interconnection
High Reliability and Security
- Advanced Extended Volume Air Cooling (EVAC) ensures reliable heat dissipation and stronger temperature adaptation, providing 50% better heat dissipation capability than a single heat sink
- Unique AI memory fault self-healing ensures stable system running and reduces system downtime by 66%
- RoT-based secure boot ensures security everywhere
Efficient Energy Saving
- The unique algorithm is provided for the lowest power consumption of fans and CPUs, saving energy by up to 8% compared with the industry average
- Industry-leading power supply technology for higher efficiency: Three core technologies improve power and efficiency, enabling the industry
leading power conversion rate and the power loss 12.5% lower than the industry average
- Intelligent service awareness and dynamic load adjustment: The CPU working frequency is dynamically adjusted based on the actual service load
Intelligent O&M
- Automatic version push and upgrades can be completed without onsite attendance, improving upgrade efficiency by 20 times
- 75% streamlined deployment steps are performed by tools, improving deployment efficiency by 10 times
- Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking, 100% accuracy for asset stocktaking
